钴 高 钢 钻 头 系 列

Series No.821402 822402

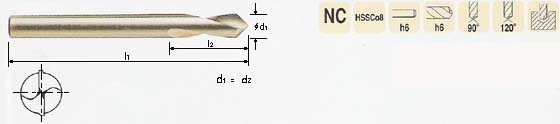

NC SPOTTING DRILLS




Application
For more precise centering work on NC/CNC Machine.
A larger diameter in respect to the subsequent drilling tool permits to obtain the centering and chamfering simultaneously.




品名:高速钢定心孔钻头(HSSCo8)

用途:用一NC/CNC机器上精密定用,可同时定以及倒角。

EDP NO.
O.D=S.D
d1=d2
FL
l2
OAL
l1
8214020300
3.0
12
46
8214020400
4.0
12
55
8214020500
5.0
15
60
8214020600
6.0
20
66
8214020800
8.0
25
79
8214021000
10.0
25
89
8214021200
12.0
30
102
8214021600
16.0
35
115
8214022000
20.0
40
131
ff
EDP NO.
O.D=S.D
d1=d2
FL
l2
OAL
l1
8224020300
3.0
12
46
8224020400
4.0
12
55
8224020500
5.0
15
60
8224020600
6.0
20
66
8224020800
8.0
25
79
8224021000
10.0
25
89
8224021200
12.0
30
102
8224021600
16.0
35
115
8224022000
20.0
40
131
