硬 质 合 金 钻 头 系 列

Series No.803323




CARBIDE GOLD DRILLS WITH COOLANT HOLE SHORT

Application
Drilling into steel in general, cast steel, cast iron, cihlled cast iron, malleable cast iron, non-ferrous heavy metal, non-ferrous light metal, abrasive plastic.


Advantage:
Self centering - center drilling is not required
Excellent positioning - bush is not necessary
Special design - reaming is not required, good chip removal,powerful drilling


品名:硬质合金中空出水黄金钻头(标准型)

用途:可钻钢件、铸钢件、铸铁件、冷硬铸铁、可锻铸铁、有色金属、有色轻金属、耐磨塑料等。

优点:
自定心,不需要中心孔。
定位精准,不需要衬套。
特殊的设计,不需要铰削,排屑好,可强力钻削。

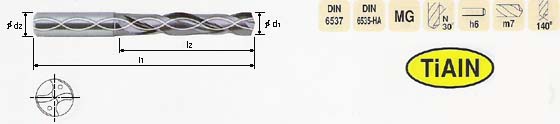

EDP NO.
O.D
d1
S.D
d2
FL
l2
OAL
l1
8033230300
3.0
6.0
20
62
8033230310
3.1
8033230320
3.2
8033230330
3.3
8033230340
3.4
8033230350
3.5
8033230360
3.6
8033230370
3.7
8033230380
3.8
6.0
24
66
8033230390
3.9
8033230400
4.0
8033230410
4.1
8033230420
4.2
8033230430
4.3
8033230440
4.4
8033230450
4.5
8033230460
4.6
8033230470
4.7
8033230480
4.8
6.0
28
66
8033230490
4.9
8033230500
5.0
8033230510
5.1
8033230520
5.2
8033230530
5.3
8033230540
5.4
8033230550
5.5
8033230560
5.6
8033230570
5.7
8033230580
5.8
8033230590
5.9
8033230600
6.0
8033230610
6.1
8.0
34
79
8033230620
6.2
8033230630
6.3
8.0
34
79
8033230640
6.4
8033230650
6.5
8033230660
6.6
8033230670
6.7
8033230680
6.8
8033230690
6.9
8033230700
7.0
8033230710
7.1
8.0
41
79
8033230720
7.2
8033230730
7.3
8033230740
7.4
8033230750
7.5
8033230760
7.6
8033230770
7.7
8033230780
7.8
8033230790
7.9
8033230800
8.0
8033230810
8.1
10.0
47
89
8033230820
8.2
8033230830
8.3
8033230840
8.4
8033230850
8.5
ff
EDP NO.
O.D
d1
S.D
d2
FL
l2
OAL
l1
8033230860
8.6
10.0
47
89
8033230870
8.7
8033230880
8.8
8033230890
8.9
8033230900
9.0
8033230910
9.1
8033230920
9.2
8033230930
9.3
8033230940
9.4
8033230950
9.5
8033230960
9.6
8033230970
9.7
8033230980
9.8
8033230990
9.9
8033231000
10.0
8033231010
10.1
12.0
55
102
8033231020
10.2
8033231030
10.3
8033231040
10.4
8033231050
10.5
8033231060
10.6
8033231070
10.7
8033231080
10.8
8033231090
10.9
8033231100
11.0
8033231110
11.1
8033231120
11.2
8033231130
11.3
8033231140
11.4
8033231150
11.5
8033231160
11.6
8033231170
11.7
8033231180
11.8
8033231190
11.9
8033231200
12.0
12.0
55
102
8033231250
12.5
14.0
60
107
8033231300
13.0
8033231350
13.5
8033231400
14.0
8033231450
14.5
16.0
65
115
8033231500
15.0
8033231550
15.5
8033231600
16.0
8033231650
16.5
18.0
73
123
8033231700
17.0
8033231750
17.5
8033231800
18.0
8033231850
18.5
20.0
79
131
8033231900
19.0
8033231950
19.5
8033232000
20.0
8033232200
22.0
25.0
89
147
8033232400
24.0
8033232500
25.0
8033232600
26.0
32.0
111
173
8033232800
28.0
8033233000
30.0
