硬
质 合 金 铣 刀 系 列
|
|
| |
Series
No.300303(公制)
|
| |
|
|
|
| |

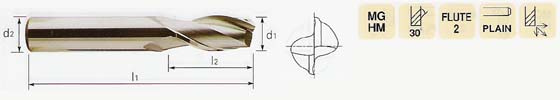

TWO FLUTE MICRO GRAIN CARBIDE END MILLS
Short Length, 2 Flute, Center Cutting, with
Straight Shank
品名：2刃微晶硬质合金铣刀
描述：短柄，2刃，过中心，直柄。
|
| |
|
Mill
Dia.
h10(d1)
铣 径
|
Shank
Dia.
h6(d2)
柄 径
|
Flute
Length
l2
刃 长
|
Overall
Length
l1
总 长
|
Carbide
|
TiAlN
Carbide
TiAlN涂层
|
TiCN
Carbide
TiCN涂层
|
|
1.0
|
3.0
|
2.0
|
39.0
|
3003030100
|
3003230100
|
3003090100
|
|
2.0
|
4.0
|
3003030200
|
3003230200
|
3003090200
|
|
3.0
|
6.0
|
3003030300
|
3003230300
|
3003090300
|
|
4.0
|
4.0
|
8.0
|
51.0
|
3003030400
|
3003230400
|
3003090400
|
|
5.0
|
6.0
|
10.0
|
3003030500
|
3003230500
|
3003090500
|
|
6.0
|
12.0
|
3003030600
|
3003230600
|
3003090600
|
|
8.0
|
10.0
|
12.0
|
3003030800
|
3003230800
|
3003090800
|
|
10.0
|
10.0
|
16.0
|
3003031000
|
3003231000
|
3003091000
|
|
12.0
|
12.0
|
19.0
|
63.0
|
3003031200
|
3003231200
|
3003091200
|
|
| |
|
| |
|
Tolerances
according to DIN 7160 & 7161
尺
寸 公
差
|
|
|
1-3
|
3-6
|
6-10
|
10-18
|
18-30
|
|
h10
|
0
-40
|
0
-48
|
0
-58
|
0
-70
|
0
-84
|
|
h6
|
0
-6
|
0
-8
|
0
-9
|
0
-11
|
0
-13
|
|
|
|
|
|
|
|
| |
|
|
| |
|
| |
|
|
| |
|
|
|
|
