硬
质 合 金 铣 刀 系 列
|
|
| |
Series
No.331303(公制)
|
| |
|
|
|
| |
|

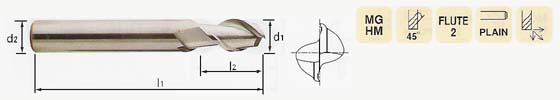

2 FLUTE MICRO
GRAIN CARBIDE END MILLS FOR ALUMINIUM
2 Flute, Helix 45°Center Cutting, with Straight
Shank
品名：2刃微晶硬质合金铝合金用铣刀
描述：2刃，45°螺旋角，过中心，直柄。
|
|
Mill
Dia.
h10(d1)
铣 径
|
Shank
Dia.
h6(d2)
柄 径
|
Flute
Length
l2
刃 长
|
Overall
Length
l1
总 长
|
Carbide
|
TiAlN
Carbide
TiAlN涂层
|
TiCN
Carbide
TiCN涂层
|
|
3.0
|
3.0
|
7.0
|
38.0
|
3313030300
|
3313230300
|
3313090300
|
|
3.5
|
6.0
|
7.0
|
57.0
|
3313030350
|
3313230350
|
3313090350
|
|
4.0
|
8.0
|
3313030400
|
3313230400
|
3313090400
|
|
4.5
|
8.0
|
3313030450
|
3313230450
|
3313090450
|
|
5.0
|
10.0
|
3313030500
|
3313230500
|
3313090500
|
|
6.0
|
10.0
|
3313030600
|
3313230600
|
3313090600
|
|
8.0
|
8.0
|
16.0
|
63.0
|
3313030800
|
3313230800
|
3313090800
|
|
10.0
|
10.0
|
19.0
|
72.0
|
3313031000
|
3313231000
|
3313091000
|
|
12.0
|
12.0
|
22.0
|
83.0
|
3313031200
|
3313231200
|
3313091200
|
|
14.0
|
14.0
|
22.0
|
3313031400
|
3313231400
|
3313091400
|
|
16.0
|
16.0
|
26.0
|
92.0
|
3313031600
|
3313231600
|
3313091600
|
|
20.0
|
20.0
|
32.0
|
104.0
|
3313032000
|
3313232000
|
3313092000
|
|
|
|
|
|
|
|
|
| |
| |
|
Tolerances
according to DIN 7160 &
7161
尺
寸 公
差
|
|
|
1-3
|
3-6
|
6-10
|
10-18
|
18-30
|
|
h10
|
0
-40
|
0
-48
|
0
-58
|
0
-70
|
0
-84
|
|
h6
|
0
-6
|
0
-8
|
0
-9
|
0
-11
|
0
-13
|
|
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
|
