钴
高 钢 铣 刀 系 列
|
|
| |
Series
No.107102
|
| |
|
|
|
| |
|

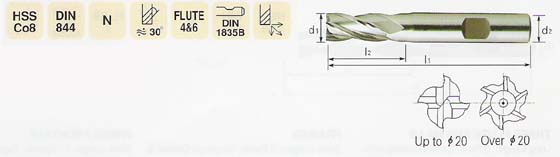

MULTI FLUTE END MILLS
Short Length, 4 & 6 Flute, with Flatted Shank
品名：多刃钴高钢铣刀
描述：标准型，4 & 6刃，平柄。
|
|
Mill
Dia.
e8(d1)
铣 径
|
Shank
Dia.
h6(d2)
柄
径
|
Flute
Length
l2
刃
长
|
Overall
Length
l1
总 长
|
No.
of
Flute
刃数
|
HSS
Co8
|
TiAlN
HSS Co8
TiAlN涂层
|
TiCN
HSS Co8
TiCN涂层
|
|
2.0
|
6.0
|
7.0
|
51.0
|
4
|
1071020200
|
1071210200
|
1071070200
|
|
2.5
|
8.0
|
52.0
|
4
|
1071020250
|
1071210250
|
1071070250
|
|
3.0
|
8.0
|
4
|
1071020300
|
1071210300
|
1071070300
|
|
3.5
|
10.0
|
54.0
|
4
|
1071020350
|
1071210350
|
1071070350
|
|
4.0
|
11.0
|
55.0
|
4
|
1071020400
|
1071210400
|
1071070400
|
|
5.0
|
13.0
|
57.0
|
4
|
1071020500
|
1071210500
|
1071070500
|
|
6.0
|
13.0
|
4
|
1071020600
|
1071210600
|
1071070600
|
|
7.0
|
10.0
|
16.0
|
66.0
|
4
|
1071020700
|
1071210700
|
1071070700
|
|
8.0
|
19.0
|
69.0
|
4
|
1071020800
|
1071210800
|
1071070800
|
|
9.0
|
19.0
|
4
|
1071020900
|
1071210900
|
1071070900
|
|
10.0
|
22.0
|
72.0
|
4
|
1071021000
|
1071211000
|
1071071000
|
|
11.0
|
12.0
|
22.0
|
79.0
|
4
|
1071021100
|
1071211100
|
1071071100
|
|
12.0
|
26.0
|
83.0
|
4
|
1071021200
|
1071211200
|
1071071200
|
|
13.0
|
26.0
|
4
|
1071021300
|
1071211300
|
1071071300
|
|
14.0
|
26.0
|
4
|
1071021400
|
1071211400
|
1071071400
|
|
16.0
|
16.0
|
32.0
|
92.0
|
4
|
1071021600
|
1071211600
|
1071071600
|
|
18.0
|
32.0
|
4
|
1071021800
|
1071211800
|
1071071800
|
|
20.0
|
20.0
|
38.0
|
104.0
|
4
|
1071022000
|
1071212000
|
1071072000
|
|
22.0
|
38.0
|
6
|
1071022200
|
1071212200
|
1071072200
|
|
25.0
|
25.0
|
45.0
|
121.0
|
6
|
1071022500
|
1071212500
|
1071072500
|
|
28.0
|
45.0
|
6
|
1071022800
|
1071212800
|
1071072800
|
|
30.0
|
45.0
|
6
|
1071023000
|
1071213000
|
1071073000
|
|
32.0
|
32.0
|
53.0
|
133.0
|
6
|
1071023200
|
1071213200
|
1071073200
|
|
|
|
|
|
|
|
|
|
| |
| |
|
TOLERANCE
|
|
MILL
DIA.
|
+0.040
-0
|
|
SHANK
DIA.
|
h6
|
|
|
|
|
|
|
|
|
