ET1
END MILL CONTENTS
(Stainless,Titanium,Inconel)
|
|
| |
Series
No.118123,118323
|
| |
|
 |
| |
|

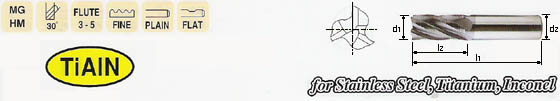

MULTI FLUTE 30°HELIX LONG
ROUGHING CARBIDE TiAlN COATED END MILLS
品名：30°高螺旋硬质合金TiAlN涂层波纹铣刀(加长型)
描述：多刃，30°高螺旋，加长型，波纹，TiAlN涂层。
|
|
Code
No. Carbide
订
货
号
|
Mill
Dia.
e8(d1)
铣 径
|
Shank
Dia.
h6(d2)
柄 径
|
Flute
Length
l2
刃 长
|
Overall
Length
l1
总 长
|
NO.OF
FLUTE
刃数
|
|
FLAT
|
STRAIGHT
|
|
1181230600
|
1183230600
|
6.0
|
6.0
|
16.0
|
57.0
|
3
|
|
1181230700
|
1183230700
|
7.0
|
8.0
|
16.0
|
63.0
|
|
1181230800
|
1183230800
|
8.0
|
16.0
|
|
1181230900
|
1183230900
|
9.0
|
10.0
|
19.0
|
72.0
|
4
|
|
1181231000
|
1183231000
|
10.0
|
22.0
|
|
1181231200
|
1183231200
|
12.0
|
12.0
|
26.0
|
83.0
|
|
1181231400
|
1183231400
|
14.0
|
14.0
|
26.0
|
|
1181231600
|
1183231600
|
16.0
|
16.0
|
32.0
|
92.0
|
|
1181231800
|
1183231800
|
18.0
|
18.0
|
32.0
|
|
1181232000
|
1183232000
|
20.0
|
20.0
|
38.0
|
104.0
|
|
1181232500
|
1183232500
|
25.0
|
25.0
|
45.0
|
121.0
|
5
|
|
|
|
|
|
|
|
|
| |
| |
|
Tolerances
according to DIN 7160 & 7161
尺
寸 公
差
|
|
|
1-3
|
3-6
|
6-10
|
10-18
|
18-30
|
|
e8
|
-14
-28
|
-20
-38
|
-25
-47
|
-32
-59
|
-40
-73
|
|
h6
|
0
-6
|
0
-8
|
0
-9
|
0
-11
|
0
-13
|
|
|
|
|
|
|
|
|
|
|
|
|
