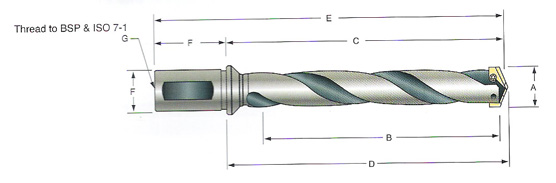

机夹式钻头系列
|
|
| |
Flanged
Straight Shank Holders
INTERMEDIATE LENGTH-SPIRAL FLUTE
|
| |
|
|
| |
| |
| |
|
Series
|
Tool
No.
|
A
|
B
|
C
|
D
|
E
|
F
|
E
|
|
Drill
Insert Range
|
Max.Drill
Depth
|
Flute
Length
|
Ref.
Length
|
Overall
Length
|
SHANK
|
Pipe
TAP
|
|
Dia
|
Length
|
|
1
|
82325025FM
|
18.0~24.0
|
117.5
|
154.8
|
158.4
|
207.9
|
25.0
|
53.1
|
1/8〞
|
|
1.5
|
83325025FM
|
22.0~24.0
|
117.5
|
154.8
|
158.4
|
207.9
|
25.0
|
53.1
|
1/8〞
|
|
2
|
84325032FM
|
25.0~35.0
|
136.5
|
179.4
|
183.0
|
237.3
|
32.0
|
57.9
|
1/4〞
|
|
2.5
|
85325032FM
|
30.0~35.0
|
136.5
|
179.4
|
183.0
|
237.3
|
32.0
|
57.9
|
1/4〞
|
|
3
|
86325040FM
|
36.0~47.0
|
165.1
|
217.5
|
222.3
|
287.6
|
40.0
|
70.1
|
1/4〞
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
Flanged
Straight Shank
Holders
STANDARD LENGTH-SPIRAL FLUTE
|
| |
 |
| |
|
Series
|
Tool
No.
|
A
|
B
|
C
|
D
|
E
|
F
|
E
|
|
Drill
Insert Range
|
Max.Drill
Depth
|
Flute
Length
|
Ref.
Length
|
Overall
Length
|
SHANK
|
Pipe
Tap
|
|
Dia
|
Length
|
|
Y
|
8Y325020FM
|
9.5~11.0
|
60.3
|
89.7
|
92.1
|
131.6
|
20.0
|
41.9
|
1/8〞
|
|
Z
|
8Z425020FM
|
11.5~12.5
|
60.3
|
89.7
|
92.1
|
131.6
|
20.0
|
41.9
|
1/8〞
|
|
0
|
80425020FM
|
13.0~17.5
|
63.5
|
92.1
|
94.9
|
134.0
|
20.0
|
41.9
|
1/8〞
|
|
0.5
|
81425020FM
|
15.5~17.5
|
63.5
|
92.1
|
94.9
|
134.0
|
20.0
|
41.9
|
1/8〞
|
|
1
|
82425025FM
|
18.0~24.0
|
168.3
|
205.6
|
209.2
|
258.7
|
25.0
|
53.1
|
1/8〞
|
|
1.5
|
83425025FM
|
22.0~24.0
|
168.3
|
205.6
|
209.2
|
258.7
|
25.0
|
53.1
|
1/8〞
|
|
2
|
84425032FM
|
25.0~35.0
|
187.3
|
230.2
|
233.8
|
288.1
|
32.0
|
57.9
|
1/4〞
|
|
2.5
|
85425032FM
|
30.0~35.0
|
187.3
|
230.2
|
233.8
|
288.1
|
32.0
|
57.9
|
1/4〞
|
|
3
|
86425040FM
|
36.0~47.0
|
209.6
|
261.9
|
266.7
|
332.0
|
40.0
|
70.1
|
1/4〞
|
|
4
|
87425040FM
|
48.0~65.0
|
231.8
|
281.0
|
285.8
|
351.1
|
40.0
|
70.1
|
1/4〞
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
| |
| |
|
|
